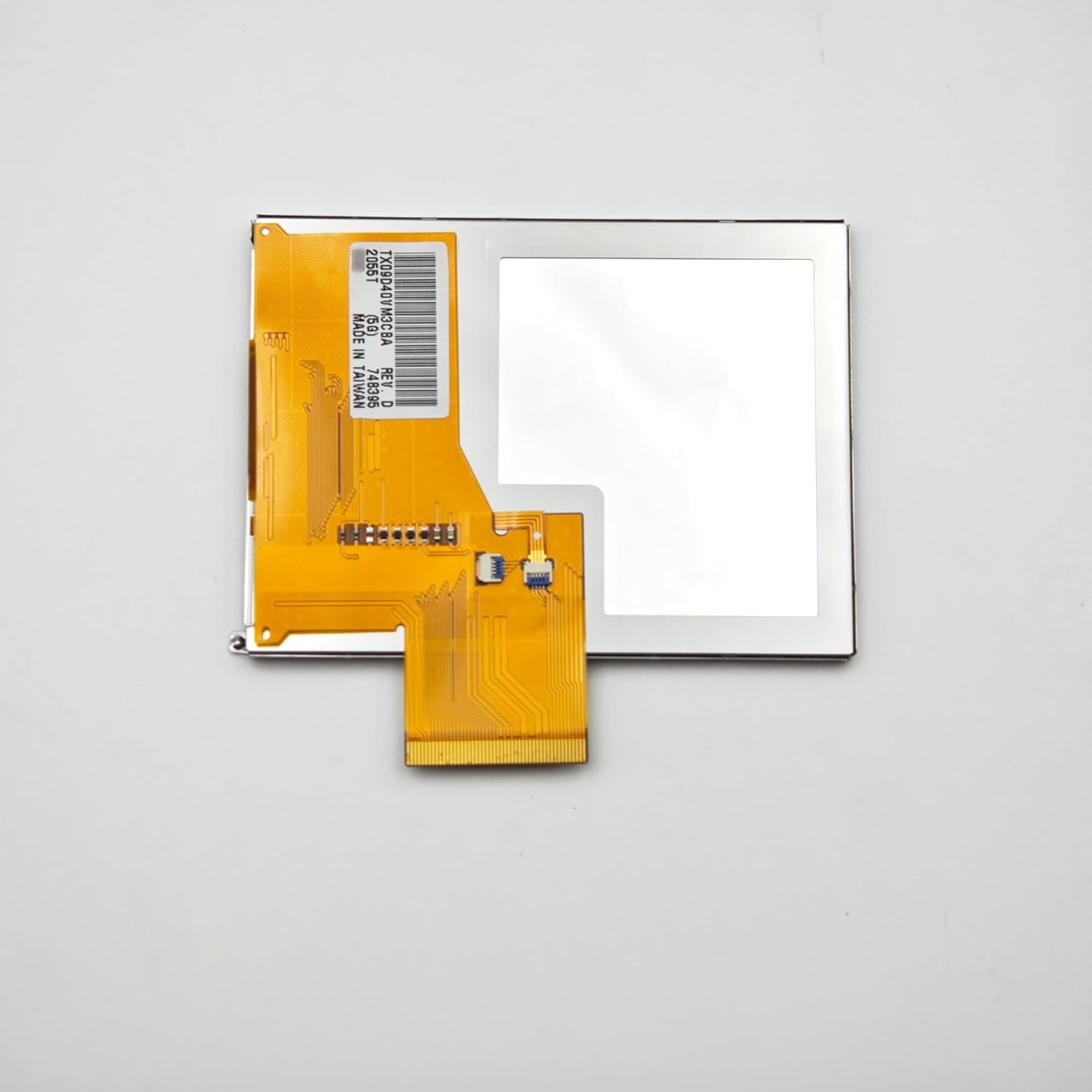

TX09D40VM3CBA 3.5 inch TFT LCD Display Panel 240×320 QVGA Parallel RGB Interface

This 3.5-inch TFT-LCD display module features an ultra-thin design at only 4.5mm thickness, making it suitable for space-constrained industrial applications.Display Specifications: - Resolution: 240(RGB)×320 pixels (QVGA) - Aspect ratio: 3:4 - Pixel arrangement: RGB vertical stripe - Active area: 53.64(W) × 71.52(H) mm - Outline size: 64(W) × 86(H) × 4.5(D) mm - Contrast ratio: 300:1 (Typ.) - Viewing angles: 80/50/80/80 (L/R/U/D) at CR≥5 - View direction: 9 o'clock (landscape orientation) - Response time: 30 ms (Typ.) (Tr+Td) - Support color: 262K colors, 46% NTSCBacklight Information: - WLED backlight with 3S2P configuration - Important: Backlight driver is NOT included. External driver is required.Environmental Specifications: - Operating temperature: -30°C to +80°C - Storage temperature: -30°C to +80°C - No touch screen - No surface coatingThis display is ideal for industrial control panels, embedded systems, and custom projects where thin profile and high brightness are required.

• 3.5 inch TFT-LCD display panel with QVGA resolution of 240 by 320 pixels and 3:4 aspect ratio, RGB vertical stripe pixel arrangement. Ultra-thin design at only 4.5 mm thickness.
• Higher brightness at 430 cd/m² typical, contrast ratio of 300:1, viewing angles of 80,50,80,80 at CR greater than or equal to 5, response time 30 ms typical for Tr plus Td.
• No touch screen. WLED backlight with 3S2P configuration. Important: Backlight driver is not included, external driver required.
• Mechanical dimensions: active area 53.64 by 71.52 mm, outline 64 by 86 by 4.5 mm, weight 36.0 grams typical. No surface coating.
• Wide operating temperature -30 to 80 degrees Celsius, storage temperature -30 to 80 degrees Celsius. Interface is Parallel RGB with 1 channel 6-bit on a 50-pin FPC connector. Multiple input voltages required: VCC 3.0V, VDH 8.45V, VGH 16.5V, VGL -8.05V. Refresh rate 60Hz. Supports 262K colors with 46 percent NTSC. View direction is 9 o clock.
