SEAFLO 53-Series DC Diaphragm Water Pump – 7.0 GPM, 60 PSI, 12V | Heavy-Duty, Self-Priming, Bypass with Pressure Switch, Continuous Duty, 4-Year Warranty

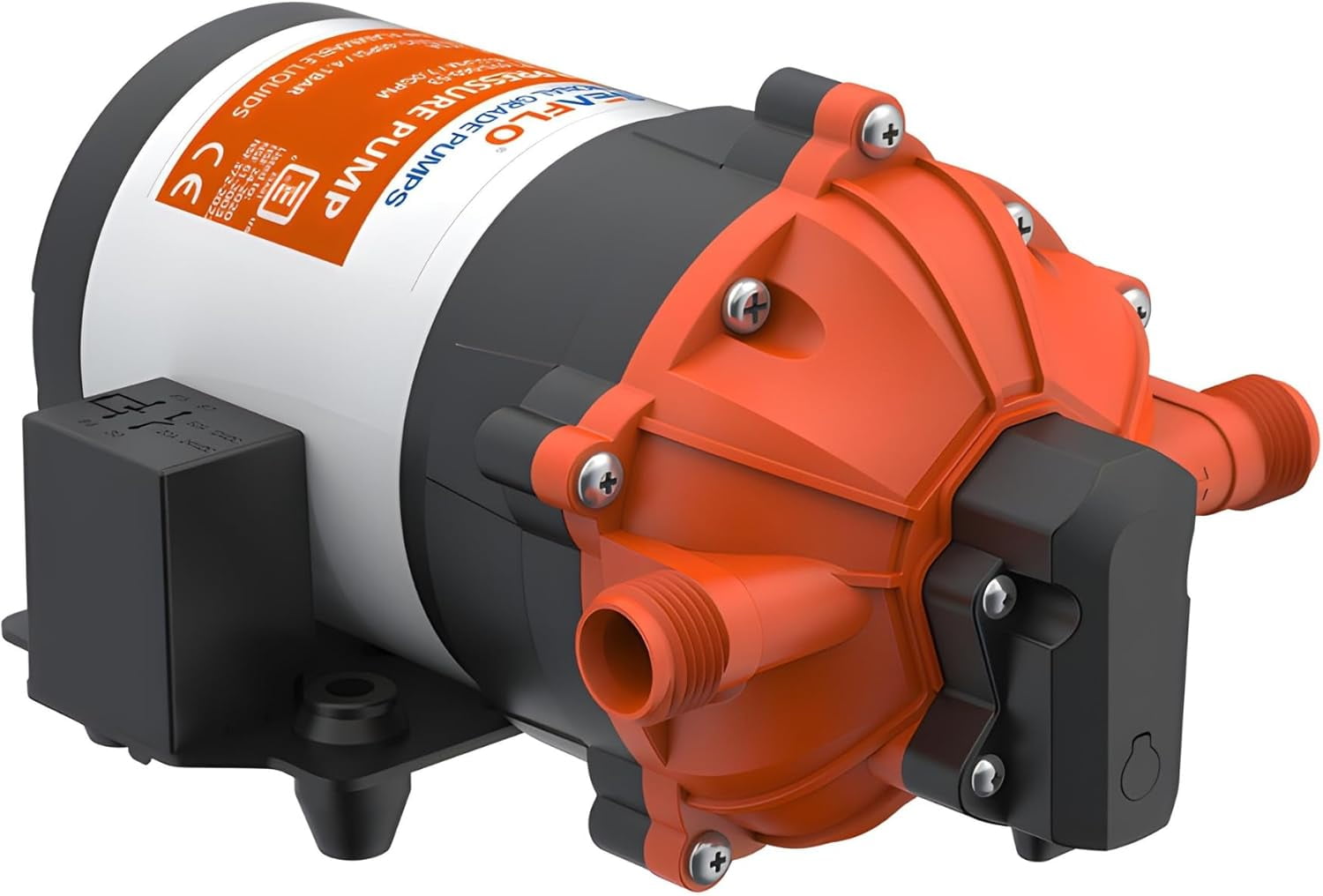

The SEAFLO 53-Series DC Diaphragm Pump is engineered to deliver exceptional performance and durability for demanding water systems. Capable of producing up to 7.0 gallons per minute (26.5 liters per minute) and handling pressures up to 60 PSI (4.2 BAR), this pump is ideal for RVs, marine vessels, and agricultural applications. Its five-chamber diaphragm minimizes cycling while maintaining a steady flow, ensuring efficiency across various water systems. Designed with convenience in mind, the SEAFLO 53-Series features an integrated bypass system for smoother operation by preventing pressure fluctuations and pump cycling. The built-in automatic pressure switch activates the pump when water is needed and stops it when the demand ceases, enabling seamless on-demand operation. Rated for continuous duty, this pump is built to run consistently for extended periods, making it ideal for heavy-use scenarios. Quick Attach fittings simplify installation, while its self-priming and run-dry capabilities ensure reliability in challenging conditions. Backed by SEAFLO’s 4-Year Limited Warranty, this pump is the perfect choice for rugged applications.

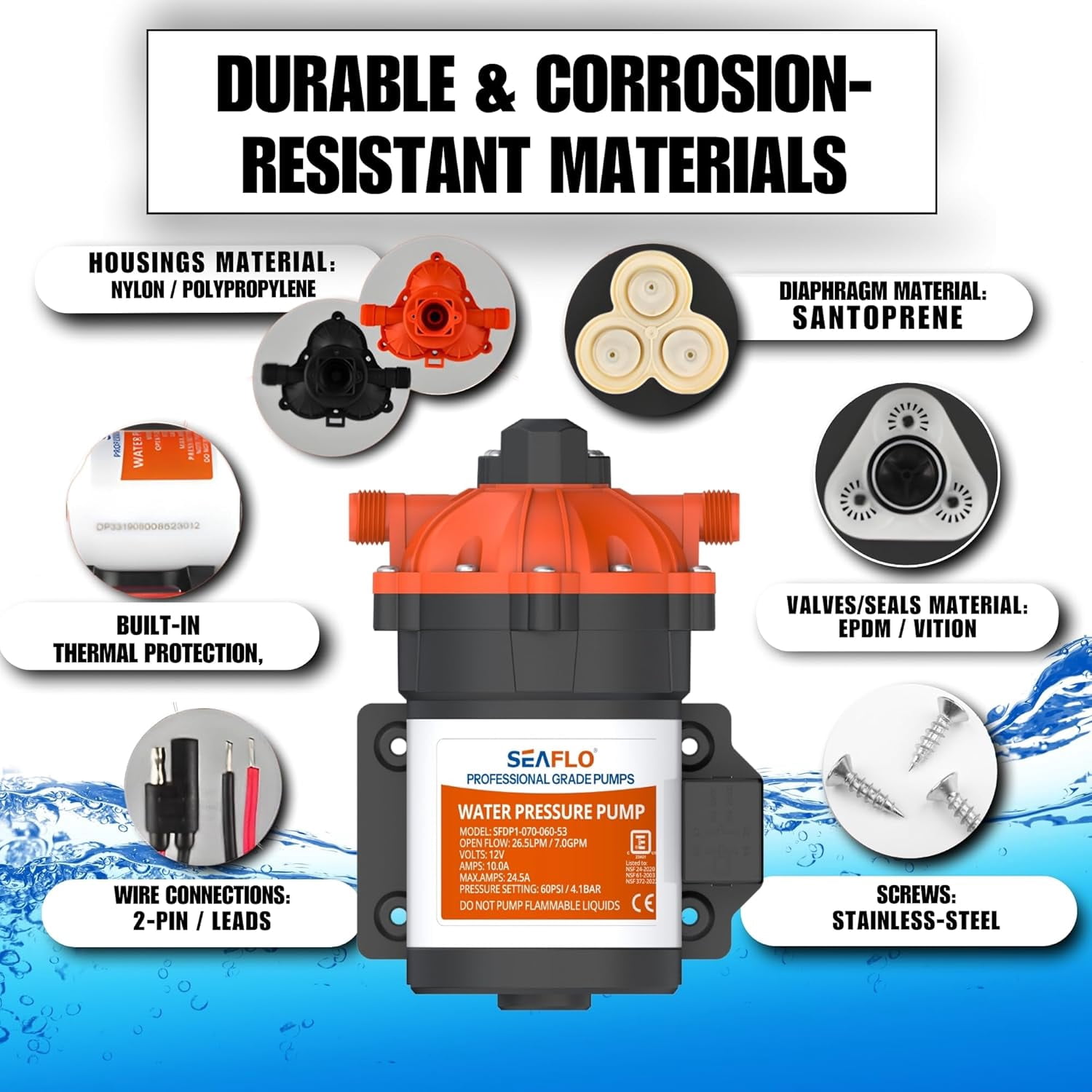

• [ SPECIFICATIONS ]:  Model Number: SFDP1-070-060-53 Voltage: 12V  Open Flow: 7.0 GPM (26.5 LPM)  Shut-Off Pressure: 60 PSI (4.2 BAR)  Priming Capabilities: 6 feet (1.8 m) suction lift  Material: EPDM (Valves) / Santoprene (Diaphragm)  Ports: 1/2" NPT Pipe Thread  Max Recommended Temperature: 140°F (60°C)  Warranty: 4-Year Limited Warranty

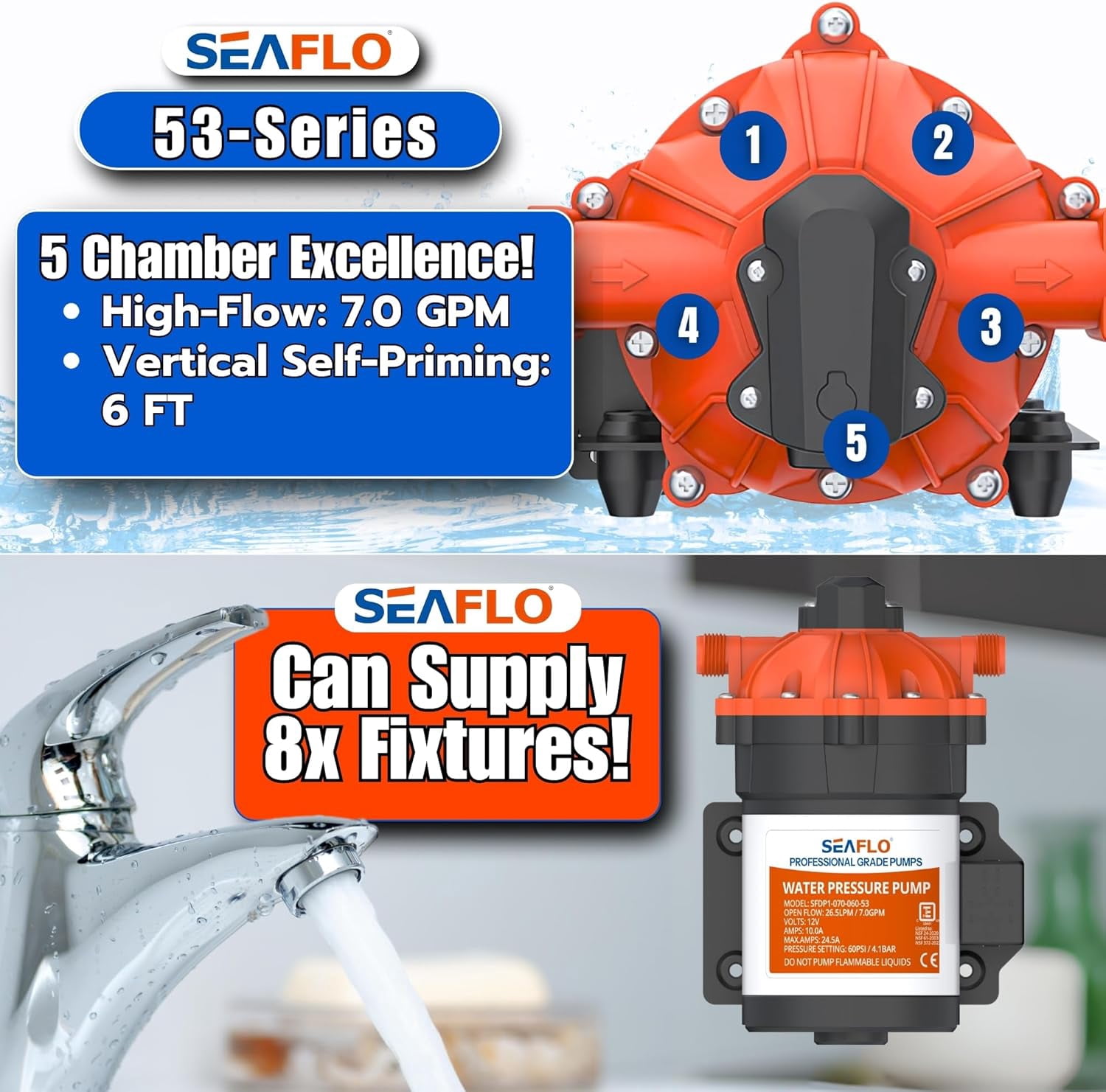

• [ HIGH VOLUME WATER FLOW ]: Produces up to 7.0 GPM (26.5 LPM), supporting systems with up to six fixtures for consistent water pressure in demanding applications.

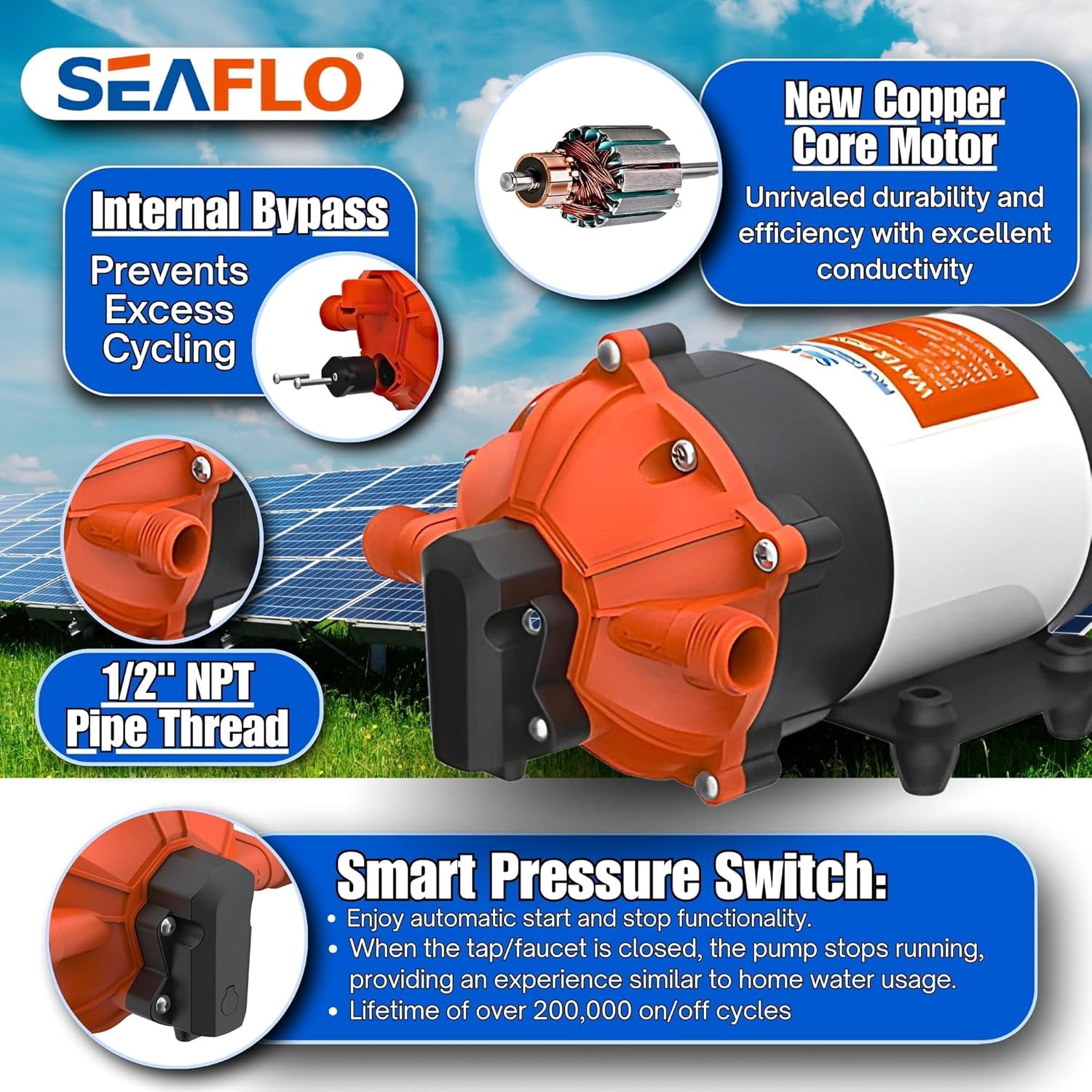

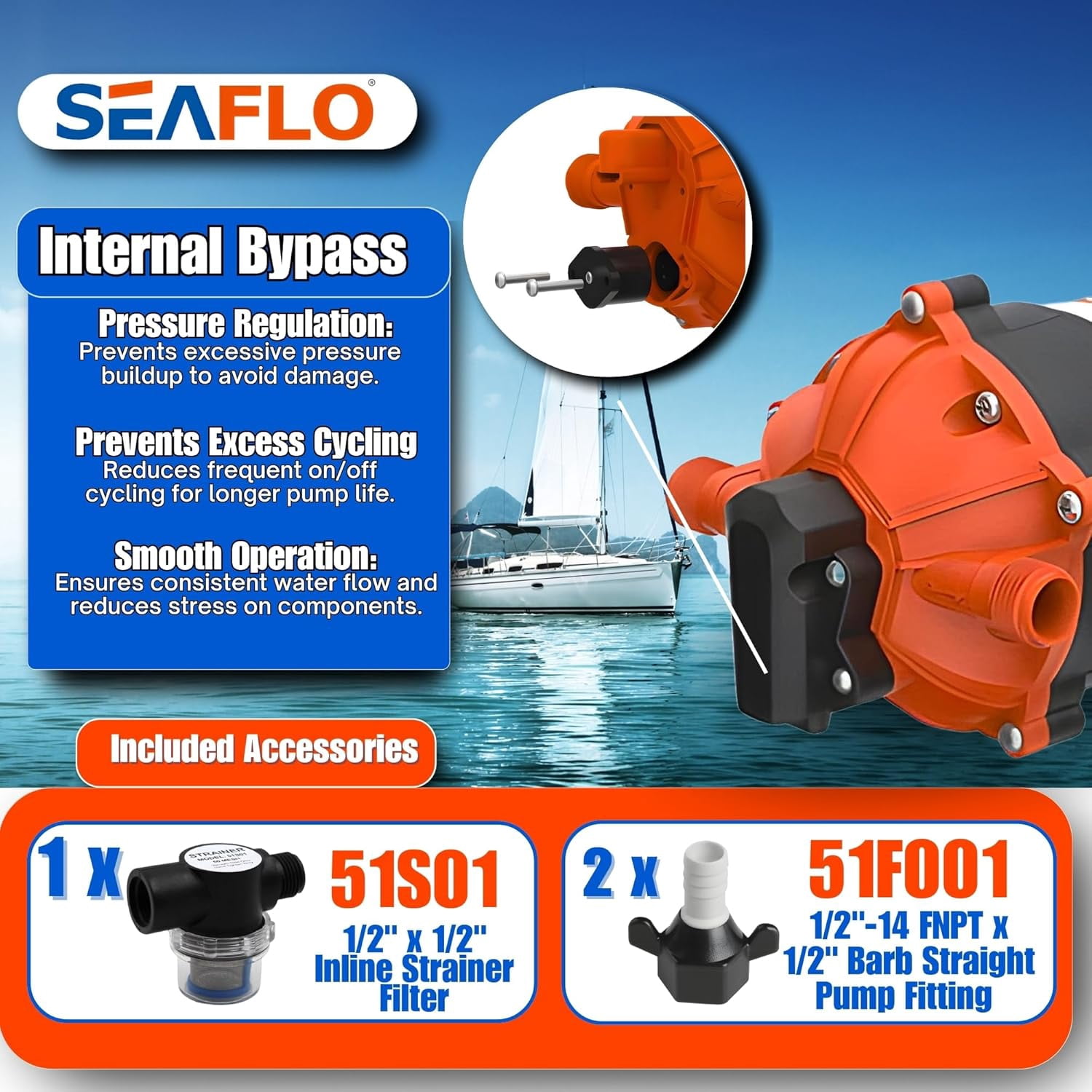

• [ INTEGRATED BYPASS SYSTEM FOR STABILITY ]: Maintains consistent pressure and prevents cycling during low water demand, reducing wear and ensuring smoother operation.
• [ INTEGRATED BYPASS SYSTEM FOR STABILITY ]: The pump’s built-in bypass system helps maintain consistent pressure and prevents cycling during low water demand, reducing wear and tear while ensuring smoother operation.
• [ AUTOMATIC PRESSURE SWITCH FOR ON-DEMAND OPERATION ]: Activates the pump when water flow is needed and stops it when the demand ceases, providing seamless functionality.
• [ DESIGNED FOR CONTINUOUS DUTY ]: Engineered for extended use, the SEAFLO 53-Series is rated for continuous duty, making it reliable for heavy-use applications such as agricultural water transfer, marine washdowns, and RV water systems.
• [ SELF-PRIMING AND RUN-DRY SAFE ]: The pump features a self-priming capability with a suction lift of up to 6 feet (1.8 meters) and can run dry without damage, providing flexibility and peace of mind during operation.
• [ DESIGNED FOR CONTINUOUS DUTY ]: Rated for extended use, making it reliable for heavy-duty applications such as agricultural water transfer, marine washdowns, and RV systems.
• [ SELF-PRIMING AND RUN-DRY SAFE ]: Features a suction lift of up to 6 feet (1.8 meters) and can run dry without damage for flexibility in operation.stant and suitable for both freshwater and saltwater use.
• [ 1/2" NPT PIPE THREAD PORTS ]: Provides secure and reliable connections for ease of installation into various water systems.
