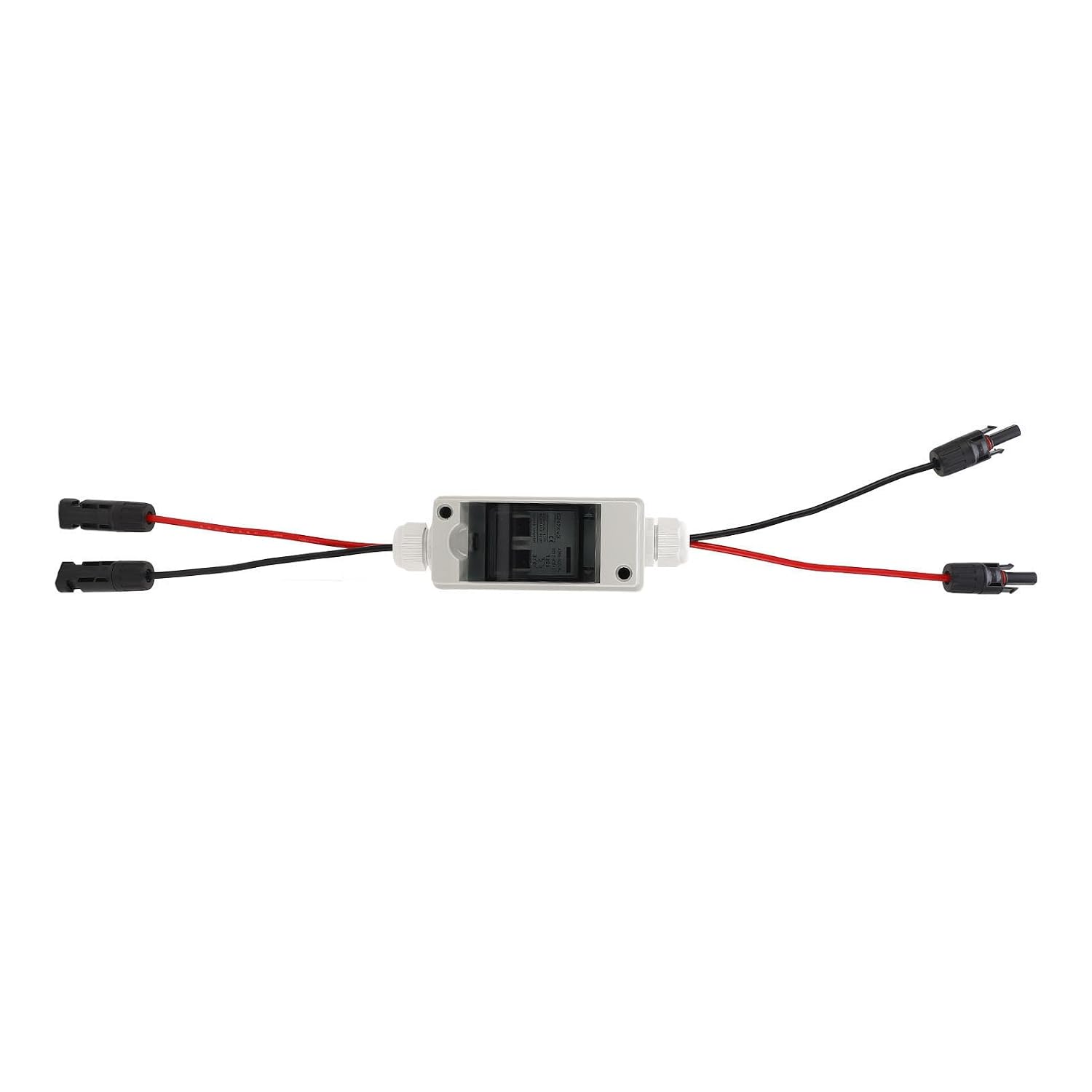

63A PV Circuit Breaker DC12‑400V AC90‑400V Solar Miniature Circuit Breaker with IP65 Box

Specification:Item Type: PV Circuit BreakerMaterial: Pa66Model: DZ47X 63Waterproof Grade: IP65Rated Current: 63ARated voltage: DC 12-400V AC 90-400VIcu: 4kAUimp: 4kVTrip Curve: B (3-5 I/In)Electrical Life: 4000 timesMechanical Life: 10000 timesStandard: IEC60947-2Working Temperature: -30? to +70?How to Use:1. Open the package and take out the product.2. Install the supporting wires and accessories in the electrical box.3. Connect the solar panel to use it.Package List:1 x PV Circuit Breaker Box (Upper and Lower Parts)1 x Electric Tape2 x 2 x Connector2 x Ring2 x Ring7 x Screw4 x Anchor4 x Connection Terminal4 x PV Cable

• IP65 ELECTRICAL BOX: The solar disconnect switch with box is IP65 waterproof, ensuring outdoor use.
• POWER SUPPLY: With a rated voltage of DC 12 to 400V AC 90 to 400V, this circuit breaker can be applied in various applications.
• EASY CONNECTION: The kit is equipped with solar connectors, which makes the installation and safer, plug and play.
• WIDE USAGE: The solar circuit breaker suitable for PV solar panel grid connected and solar off grid system, solar power generation system, PV array, RV, etc.
• TRANSPARENT COVER: The upper cover of the box is transparent, more convenient for you to check the status of the breaker.
